便攜式無線雙向車底掃描儀是一套集自動檢測車輛并對車輛底盤進行圖像采集、顯示、拼接、抓拍匯總、比對報警、自動環控為一體的車輛安檢系統。該系統能有效防止車底藏匿炸彈、武器、生化危險品、危險人物出入政府機關、軍事管理、銀行庫區、車站碼頭等重要安全保護場所；防止車底攜帶毒品與槍支彈藥等危險品、非法走私物

在線訂購

產品信息

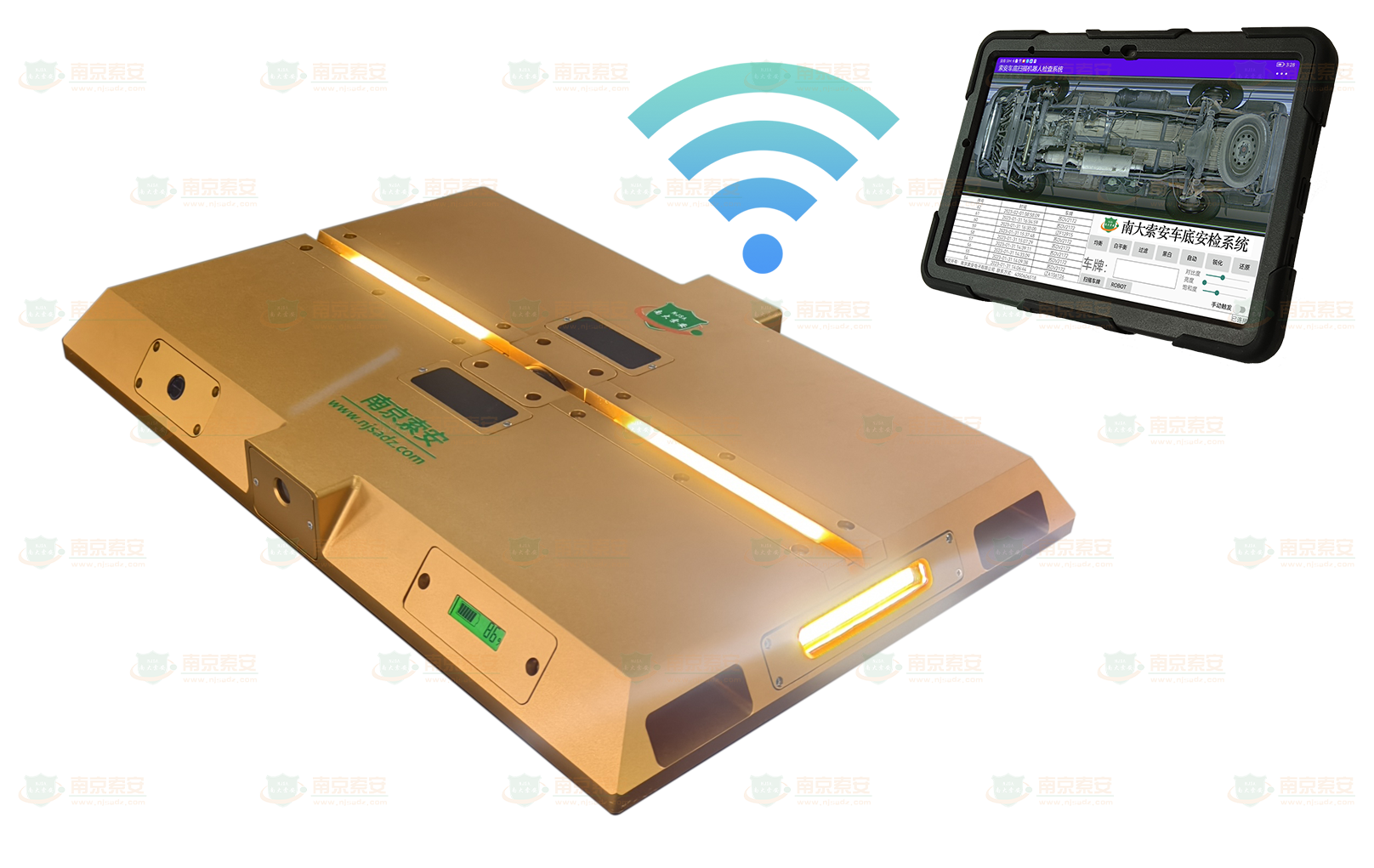

便攜式無線雙向車底掃描儀是一套集自動檢測車輛、并對車輛底盤進行圖像采集、顯示、拼接、抓拍匯總、比對報警、自動環控為一體的車輛安檢系統。

該系統能有效防止車底藏匿炸彈、武器、生化危險品、危險人物出入政府機關、軍事管理、銀行庫區、車站碼頭等重要安全保護場所；

防止車底攜帶毒品與槍支彈藥等危險品、非法走私物乃至可疑人物通過海關、邊防檢查站，

防止危險分子駕車沖闖國家大型會議、運動賽事、演唱會、展會、體育館等臨時安檢人群密集場所

防止被關押人員潛逃出監獄、看守所、戒毒所等；

同時可對列車、汽車等車輛底盤進行交通安全檢測及車況質量檢查評估等應用。

Product Information

Portable wireless two-way vehicle chassis scanner is a set of automatic vehicle inspection, and vehicle chassis image acquisition, display, splicing, capture summary, comparison alarm, automatic ring control as one of the vehicle security system.

The system can effectively prevent the vehicle chassis to hide bombs, weapons, biochemical hazards, dangerous people in and out of government agencies, military management, bank storage areas, stations and terminals and other important security protection places;

Preventing the vehicle chassis from carrying dangerous goods such as drugs and firearms and ammunition, illegal smuggled goods and even suspicious persons through customs and border checkpoints.

Preventing dangerous elements from driving into large national conferences, sports events, concerts, exhibitions, stadiums and other temporary security crowded places.

Prevent detainees from absconding from prisons, detention centers and drug rehabilitation centers;

At the same time, it can be used for traffic safety inspection and vehicle condition quality inspection and evaluation of trains, cars and other vehicle chassis.

無線掃描 (10).jpg

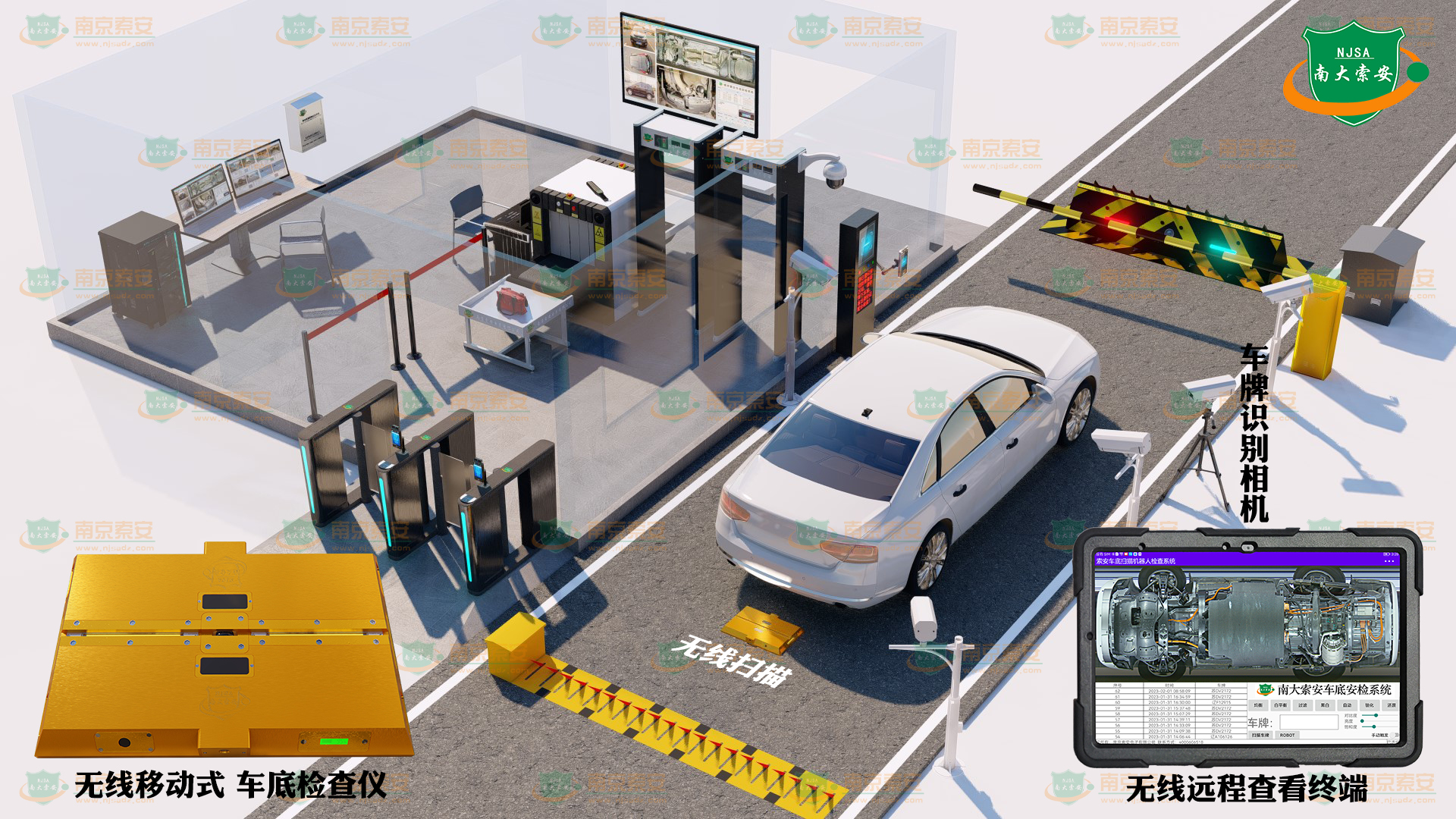

應用場景：

1、國家大型會議、運動賽事、演唱會、展會、體育館等活動的車輛出入口的臨時安全防范、反恐檢查；

2、監獄、看守所、戒毒所等的出入口防逃檢查；

3、機場、政府、銀行庫區、保稅區、大使館、港口碼頭、車站、軍隊、公安等重點場所的出入口、停車場的反恐防夾帶檢查；

4、海關、邊檢口岸的檢查卡口臨時的防走私、反偷渡檢查；

5、交通安全檢查站、車輛檢測中心、4S店維修車間、新能源換電站等的車輛性能檢測。

Application Scenario：

1、Temporary security prevention and anti-terrorism inspection of vehicle entrances and exits of large national conferences, sports events, concerts, exhibitions, stadiums and other activities;

2, Prisons, detention centers, drug rehabilitation centers and other entrances and exits to prevent escape inspection;

3, anti-terrorism anti-entrapment inspection of entrances and exits, parking lots of key places such as airports, governments, bank depots, bonded areas, embassies, ports and terminals, stations, armies, and public security;

4, Customs, border control ports of the checkpoint temporary anti-smuggling, anti-smuggling checks;

5, Vehicle performance inspection at traffic security checkpoints, vehicle testing centers, 4S store maintenance workshops, new energy exchange stations, etc.

產品介紹

設備尺寸：400*600*55mm

傳輸方式：無線WIFI

拍攝車輛寬度：大于4000mm

拍攝長度：支持無限長車輛掃描

掃描方向：雙向掃描

視場角度：180o

圖片類型：彩色JPG格式；

車底圖片分辨率：2048*n

圖片失真：小于5%；

防塵防水等級：IP68(完全防塵、防水浸)

圖象采集方式：車輛檢測系統自動觸發

照明組件：頂部、兩側四條LED補光燈條自動補光

車底成像設備表面結構采用方形高強度軍用特級鋁制品；

底盤成像設備多重密封設計：防塵、防潮、防霧；

拍攝車底高度：小于3500mm（適應不同底盤高度的車輛）

車輛通過速度：（建議）1-120Km/h，正常情況下出入口車速控制≦30KM/h；

車底成像設備：采用高強度抗壓設計；車底設備承重：≥30噸；

Product introduction

Equipment Size: 400*600*55mm

Transmission mode: wireless WIFI

Scanning vehicle width: greater than 4000mm

Scanning length: support unlimited length vehicle scanning

Scanning direction: bidirectional scanning

Field of view angle: 180o

Picture type: color JPG format;

Underbody picture resolution: 2048*n

Picture distortion: less than 5%;

Dustproof and waterproof grade: IP68 (completely dustproof and waterproof immersion)

Image acquisition mode: automatically triggered by vehicle detection system

Lighting components: top, both sides of the four LED fill light bar automatically fill light

Imaging equipment surface structure using square high-strength military special grade aluminum products;

Imaging equipment multiple sealing design: dust-proof, moisture-proof, anti-fog;

Shooting height of the undercarriage: ＜3500mm (to adapt to different chassis height of the vehicle)

Vehicle passing speed: (recommended) 1-120Km/h, under normal circumstances the entrance and exit speed control ≦ 30KM/h;

Imaging equipment: the use of high-strength compression-resistant design; equipment load-bearing: ≥ 30 tons;

產品特點：

1.手提箱裝載，移動便攜，免施工預埋免安裝，可直接擺放于路面，迅速布防，對車底違禁物或車況進行安全檢查。而傳統的移動掃描需配置航空箱，現場接線安裝布置，并非真正做到移動便攜。

2.終端PAD進行遠程查驗，更加輕便易，連接掃描儀前端發出的WiFi信號，進行遠程車底檢查，將前方車底檢查圖像傳輸?shù)絇AD終端，可以讓現場安檢人員快速便捷地進行安全檢查，大大提高了安檢工作效率，增強了安全管控的科技水平。

3.自動車牌識別并綁定信息，車輛駛過完成車底掃描后，對被檢車輛底部圖像進行采集，立即在平板上顯示高清彩色完整的車輛底盤圖像。以確定車輛底部是否加裝違禁物品或夾帶管控物品、藏匿涉罪人員或車輛進行了非法改裝或存在安全行駛的隱患。

4.雙向掃描，該設備支持進方向與出方向雙向掃描，可于平板終端查看車輛行駛方向

5.車底檢查儀配置車輛自動檢測模塊，可以自動檢測來車并自動對車底補光。也可在光線不充足的情況下，自動給各攝像機補光，讓車底檢查更清晰。同時補光亮度可以調節。

6.歷史對比，同車牌車輛多次查驗，系統自動彈出對比框進行歷史圖像比對，提高車底檢查的效率與準確度

7.各次對車輛的檢查結果可查詢，信息包括車牌號碼、來車日期時間、來車方向、受檢時的車底圖像等信息。檢查結果可反復觀看，并保存留檔?？杀緳C(jī)存儲也可以云端上傳、遠程監管與回查。

Product Features：

1. Suitcase loading, mobile and portable, free of construction pre-embedded free installation, can be placed directly on the road, rapid arming, the vehicle chassis clamping prohibited substances or vehicle conditions for security checks. The traditional mobile scanning need to configure air box, on-site wiring installation layout, not really mobile and portable.

2. Terminal PAD for remote inspection, more lightweight and easy to connect the scanner front-end WiFi signals, remote vehicle chassis inspection, the front vehicle chassis inspection images transmitted to the PAD terminal, which allows on-site security personnel to quickly and conveniently carry out security checks, greatly improving the efficiency of security work, and enhance the level of security control technology.

3. License plate recognition and binding information, the vehicle drives through the completion of the vehicle chassis scanning, the bottom of the vehicle being inspected image acquisition, immediately on the flat panel to display high-definition color complete vehicle chassis image. To determine whether the bottom of the vehicle to add prohibited items or entrainment control items, hiding people involved in crime or vehicles have been illegally modified or there are hidden dangers of safe driving.

4. Bidirectional scanning, the device supports inbound and outbound direction bidirectional scanning, can be viewed in the flat terminal vehicle driving direction

5. The inspector is equipped with automatic vehicle detection module, which can automatically detect incoming vehicles and automatically fill in the light underneath the vehicle. Can also be in the case of insufficient light, automatically fill light to the camera, so that the vehicle chassis inspection more clearly. At the same time, the brightness of the fill light can be adjusted.

6. Historical comparison, the same license plate vehicle inspection for many times, the system automatically pop-up comparison box for historical image comparison, to improve the efficiency and accuracy of the vehicle chassis inspection

7. Each time the vehicle inspection results can be queried, the information includes license plate number, the date and time of the incoming vehicle, the direction of the incoming vehicle, the vehicle chassis image when inspected and other information. Inspection results can be viewed repeatedly and saved for archiving. It can be stored locally or uploaded on the cloud, and remotely supervised and checked back.
